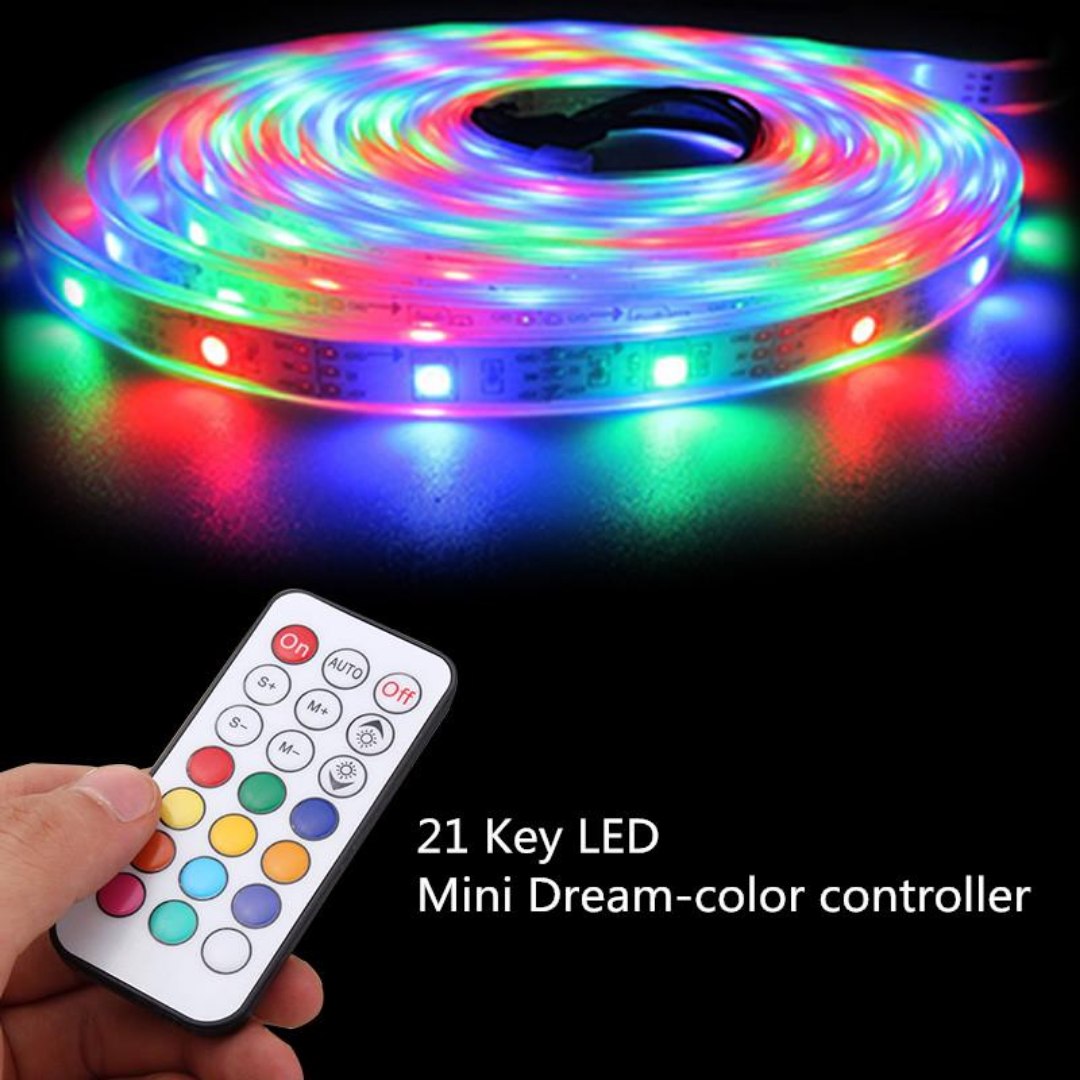

Mini RGBIC Strip Light Controller with 21 Key Remote Control

Mini RGBIC Controller with 21 Key Remote Control - Dream Color Controller with RF Remote

Mini RGBIC Strip Light Controller with 21 Key Remote Control

Add vibrant colors and dynamic effects to your lighting setup with the Mini RGBIC Strip Light Controller featuring a 21 Key Remote Control. This Dream Color Controller is the perfect addition to any WS2811 or WS2812B LED strip light, offering a range of customizable lighting effects and remote-controlled convenience.

Key Features:

1. Extensive Color Options:

• 300+ Color Modes: Enjoy over 300 dynamic color effects, including rainbow, wave, breathing, strobing, gradual change, color cycle, comet, and more.
• Adjustable Speed and Brightness: Customize the color-changing speed and brightness to match your desired ambiance.

2. Wide Compatibility:

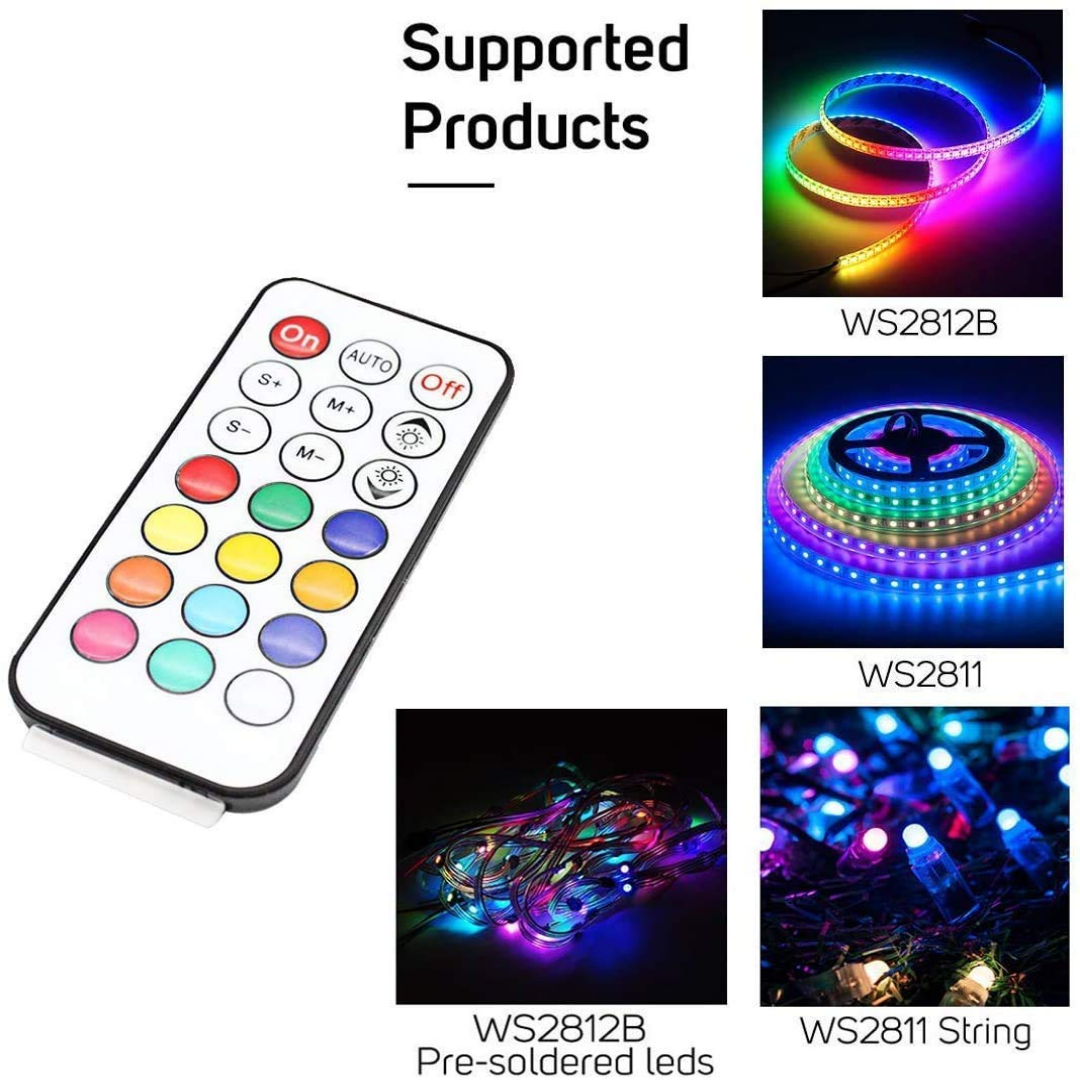

• Supports WS2811/WS2812B LED Strips: Perfect for use with 3-pin JST connectors and DC female connectors. It cannot control SK6812 RGBW LED lights or regular RGB lights without a driver IC.
• Pixel Control: Adjust the number of controlled pixels up to a maximum of 2048 pixels.

3. Convenient RF Remote Control:

• Long-Distance Control: The RF remote has a range of 10-30 meters, making it easy to control your lights from anywhere within the area.

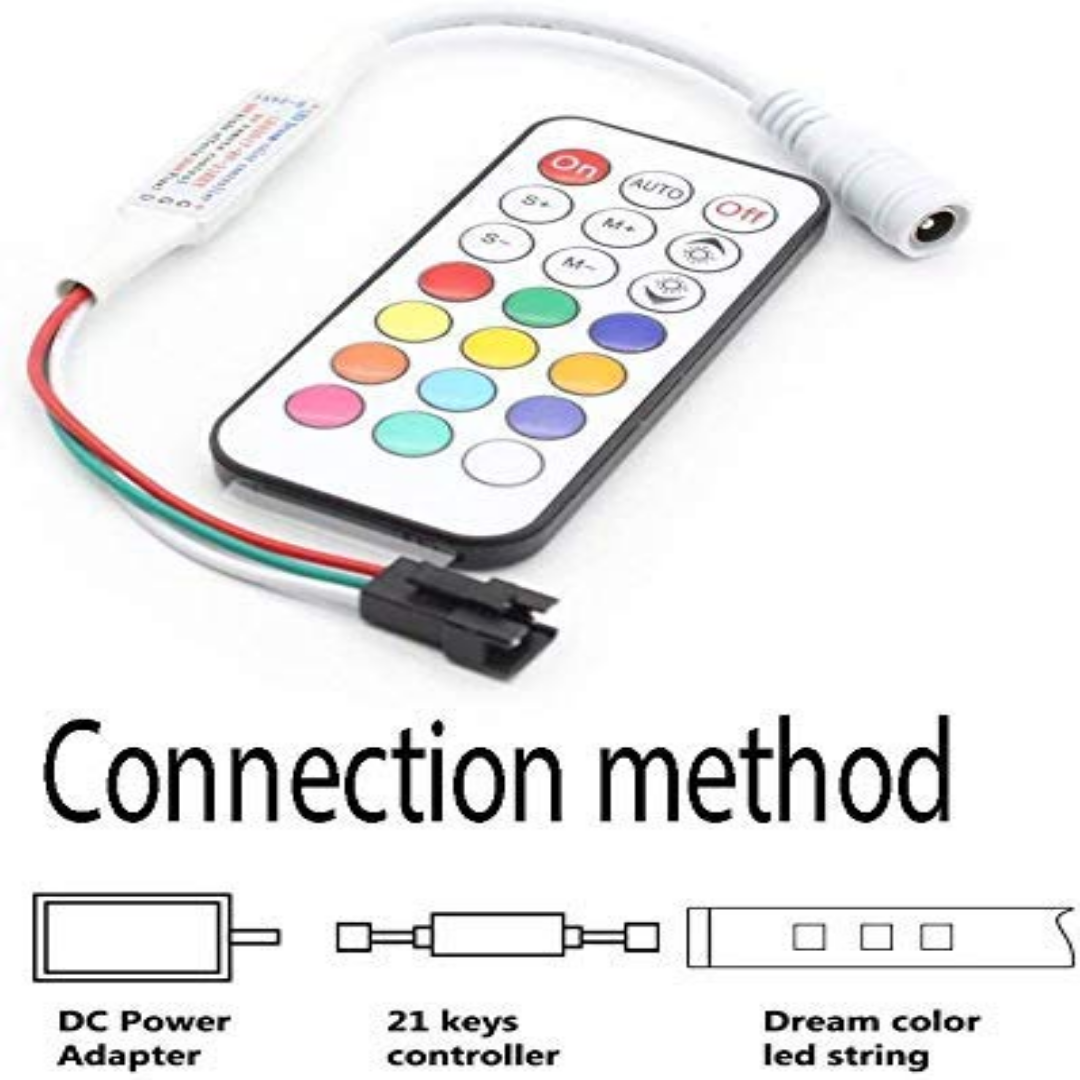

• Mini Size and Ease of Use: This compact controller is easy to install and use. It comes with a plug-and-play setup, eliminating the need for soldering.
• Memory Function: The controller saves your settings automatically when powered off, ensuring your preferences are always ready when you turn the lights back on.

4. Customizable Color Order:

• Adjustable Color Order: Customize the color sequence (e.g., RGB, GRB, BRG) to suit your preferences. If the color appears incorrect (e.g., green shows as red), refer to the user manual for easy setup.

5. Power and Voltage:

• Voltage Range: Works with DC 5V to 24V power input.
• Power Limitations: The controller can handle up to 30W for 5V, 72W for 12V, and 144W for 24V. For higher power demands, separate power supplies or amplifiers are recommended to avoid overheating.

Specifications:

• Working Voltage: 5-24V
• Operating Current: <30mA
• Operating Temperature: -20°C to 60°C
• Material: Plastic
• Controlled Method: RF Remote Control
• Maximum Pixels: 2048 pixels
• Maximum Power:
  • 5V <30W
  • 12V <72W
  • 24V <144W

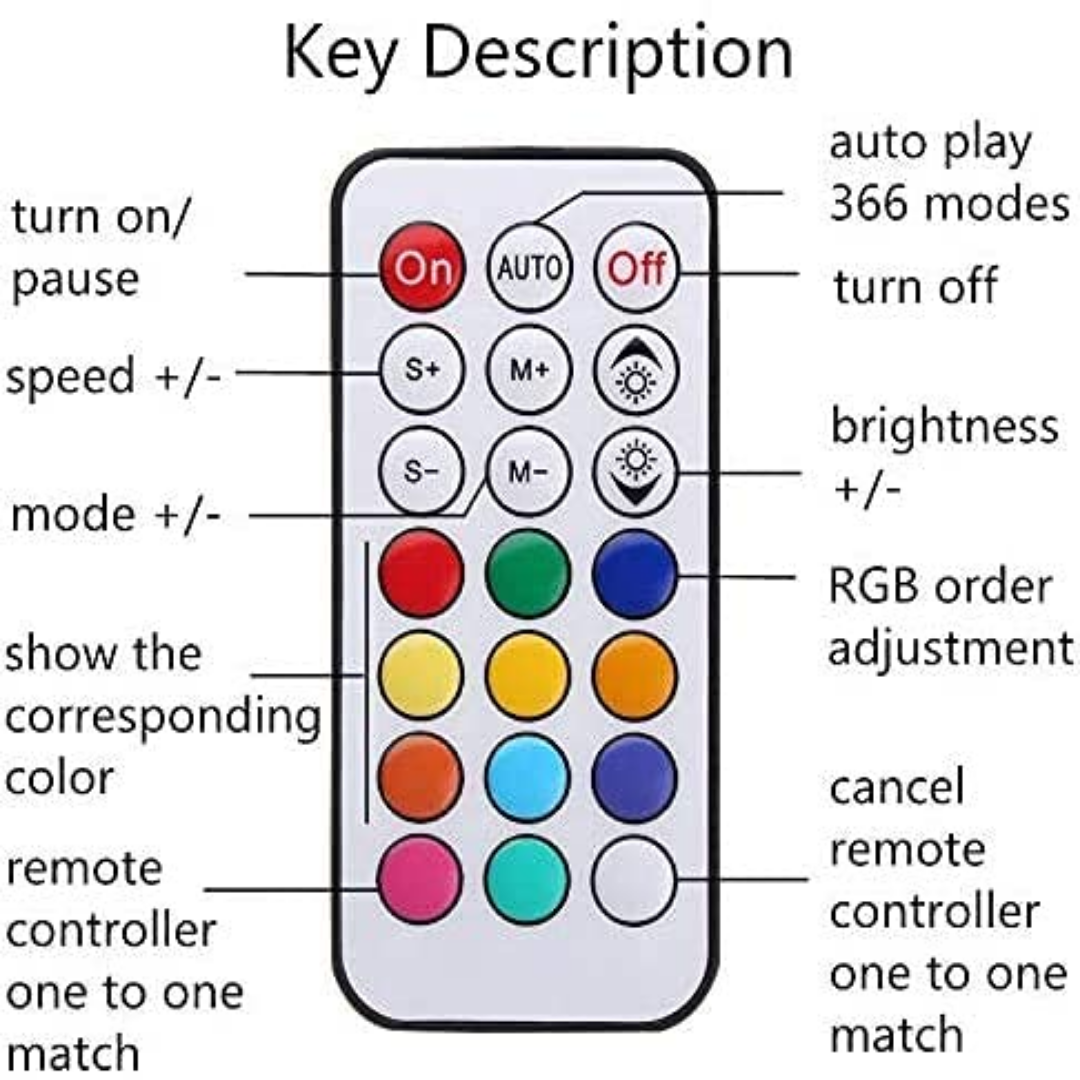

21 Keys Remote Control Functions:

• Control WS2811/WS2812B LED strips
• 300 Lighting Effects with adjustable combinations
• 16 Static Color Options
• 4 Dynamic Patterns: Flash, Strobe, Fade-Change, and RGB Smooth-Change
• Brightness Adjustment

Important Notes:

• Ensure that your LED string works with DC 5-24V power.
• For multiple strings, you will need an external power supply.
• Use the appropriate power supply for your LED strips (e.g., 5V for 5V LED strips, 12V or 24V for the respective LED strip voltages).

Package Includes:

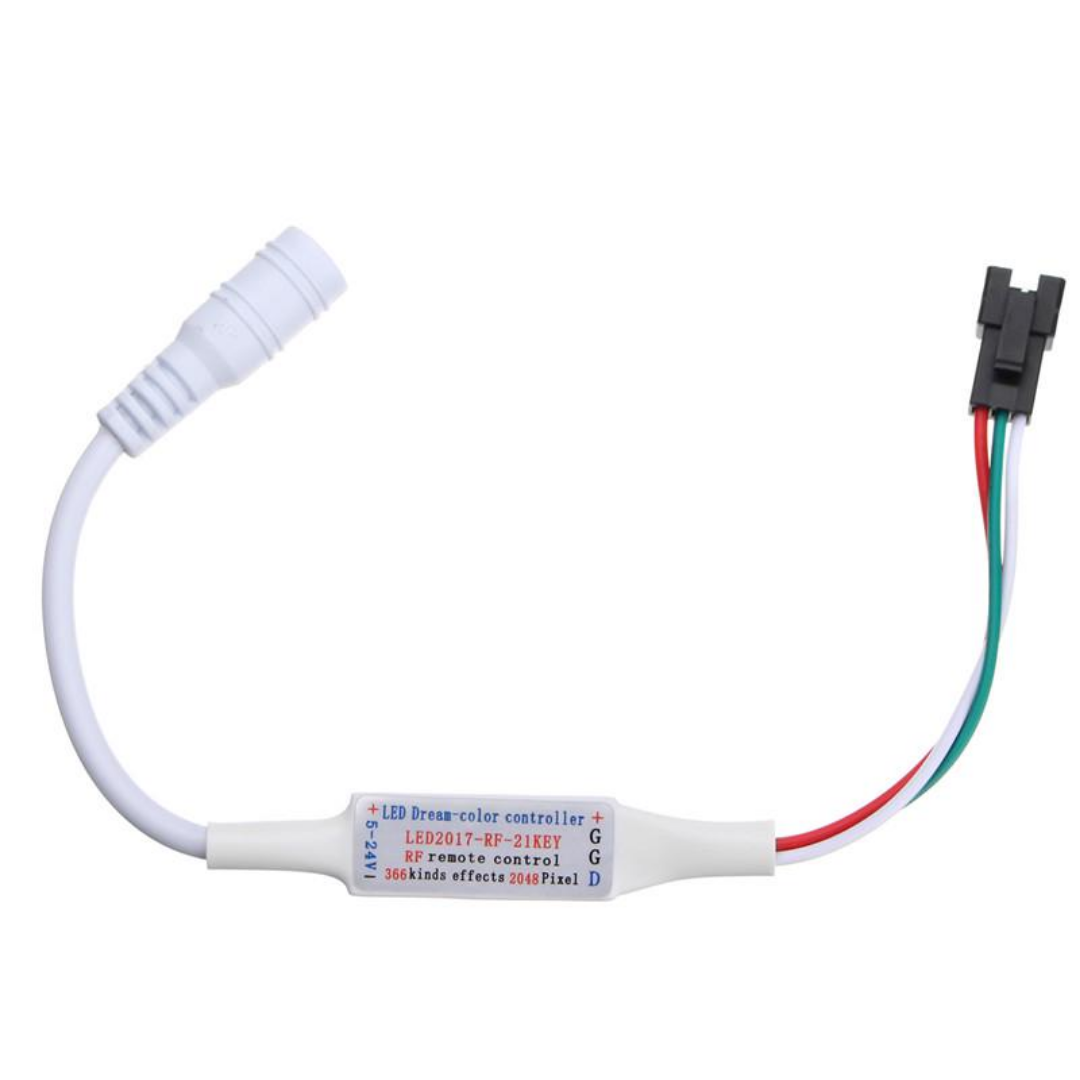

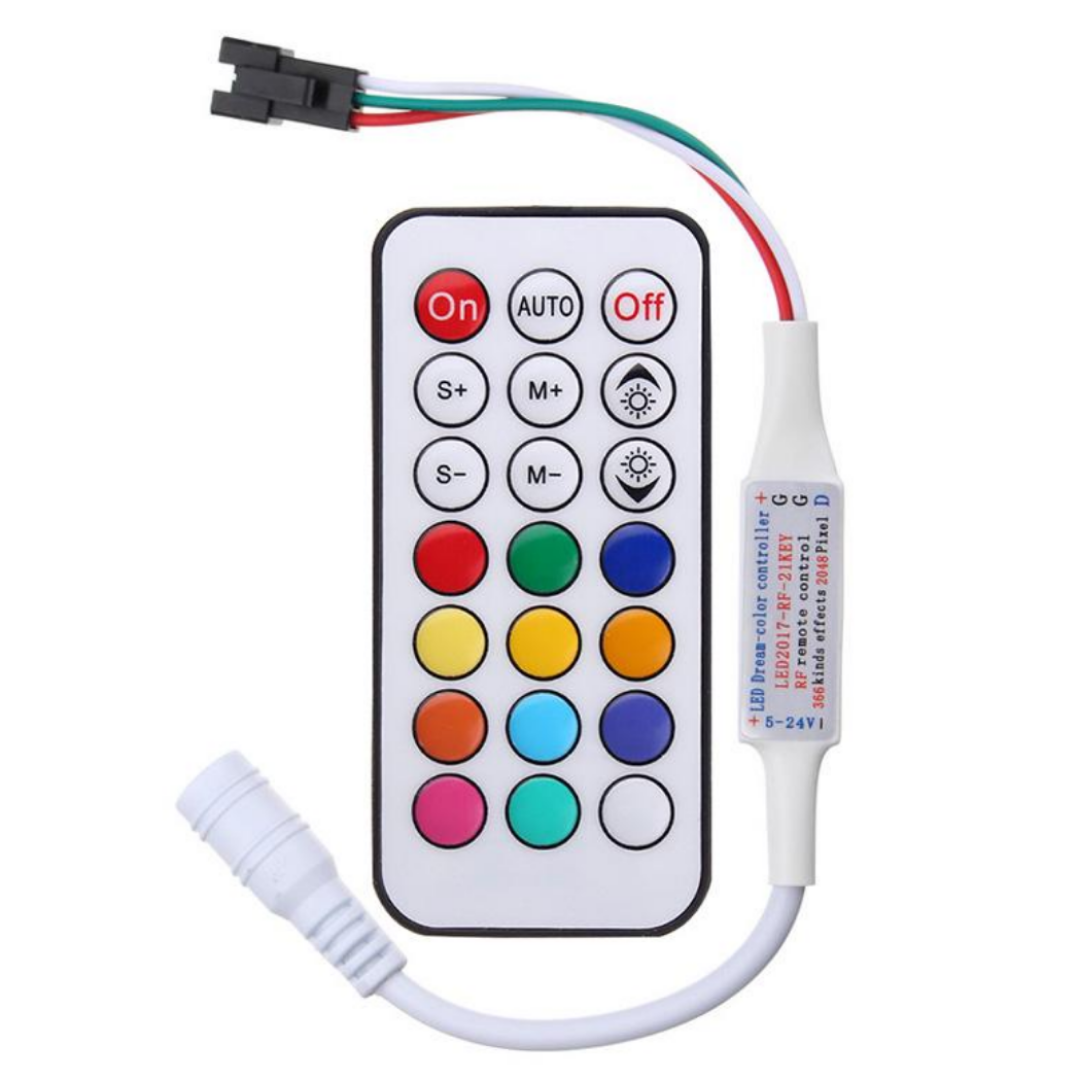

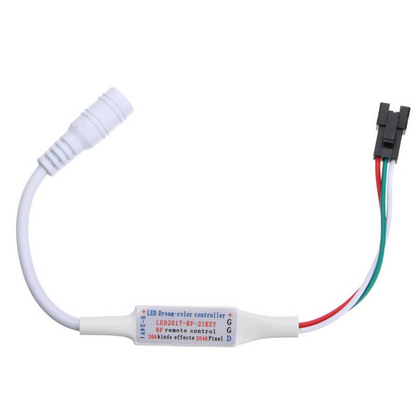

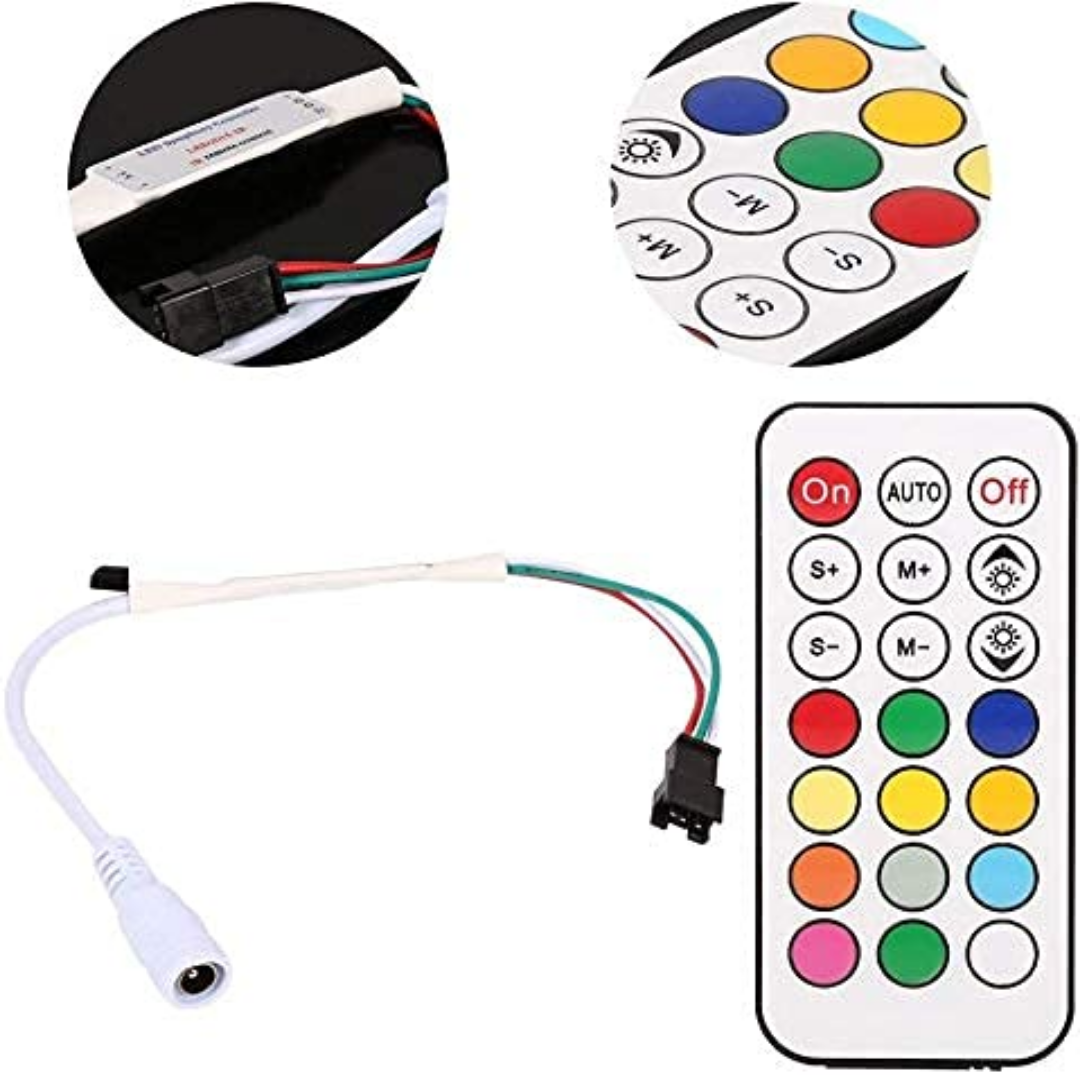

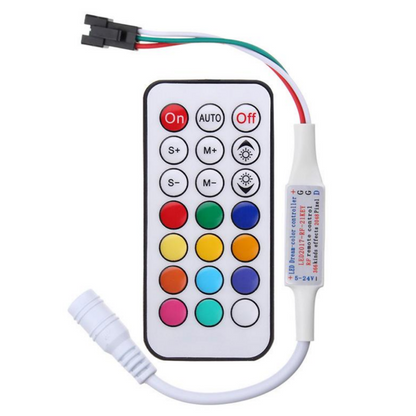

• 1 x Mini RGBIC Controller
• 1 x 21 Key RF Remote Control
• User Manual

Why Choose the Mini RGBIC Strip Light Controller?

• Convenient Control: Adjust color, brightness, and lighting effects from a distance using the RF remote.
• Customizable Effects: Tailor your lighting experience with over 300 dynamic effects and static color options.
• Easy Setup: No soldering required—just plug and play for quick installation.

Create Stunning Lighting Effects with the Mini RGBIC Controller!

Enhance your space with vibrant, customizable lighting effects that reflect your style. Whether for parties, relaxing evenings, or setting the mood, the Mini RGBIC Strip Light Controller offers all the features you need for an immersive lighting experience.

Get yours today and light up your world!
