SP801E LED WiFi Controller LED Matrix Panel Module Light AP/STA Mode

SP801E for WS2812B WS2811 LED WiFi Controller, iOS Android App Control SK6812 WS2815 Digital One-Wire RZ Code LED Driver IC RGB LED Strip LED Matrix Panel Module Light AP/STA Mode - DC 5V~24V

SP801E LED WiFi Controller for LED Matrix Panels and Strip Lights | AP/STA Mode

The SP801E LED WiFi Controller is a robust solution for managing addressable LED matrix panels and digital RGB LED strips. With advanced functionality, wide compatibility, and easy control via mobile apps, it is ideal for professional lighting designs, creative displays, and home décor.

Key Features:

1. Wide Compatibility:

• Compatible with one-wire LED driver ICs, including:
  • WS2812B, WS2811, SK6812, WS2815, and more.
• Perfect for matrix panel modules, LED strip lights, and other programmable LEDs.
• Note: Not compatible with 5050RGB or RGBW strips without ICs.

2. Dual Network Modes:

• AP Mode (Access Point): Direct connection between the controller and your phone.
• STA Mode (Station): Operate the controller through the same WiFi network as your phone.

3. Customized Multi-Effects:

• Adjust lighting direction, width, color, length, and shape for unique displays.
• Supports dynamic multi-color effects (overlay, flow, flash, etc.) and single-color effects.

4. Advanced Layered Effects:

• Built-in text and music synchronization options with support for two overlay effect layers.
• Real-time preview of designs and the ability to record and save scenes to the controller’s storage.
• Create and manage scene program lists for automated lighting sequences.

5. High Pixel Control:

• Controls up to 1024 pixels per port across its 4 TTL output ports.
• Total control for intricate designs and large-scale lighting setups.

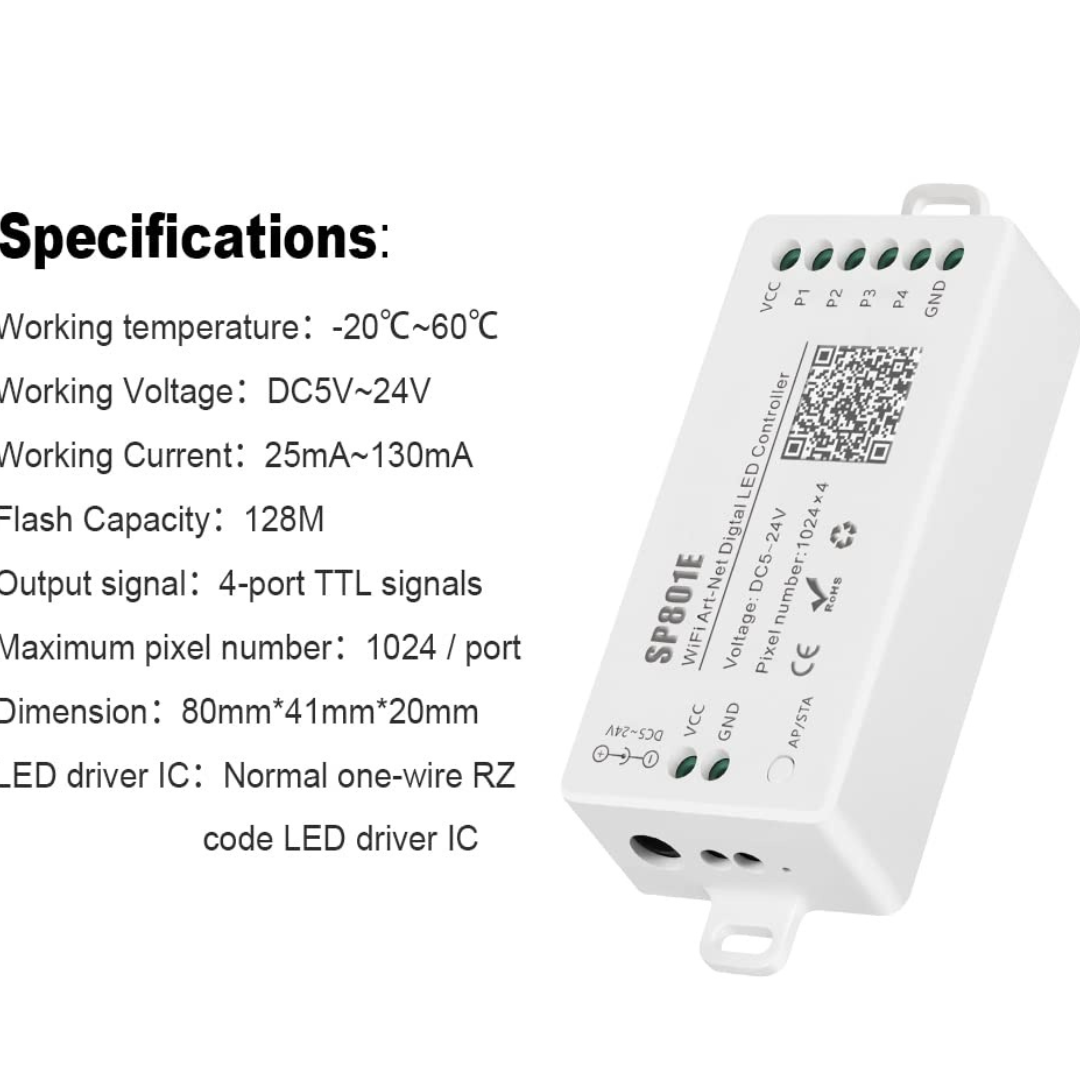

Specifications:

• Input Voltage: DC 5V~24V
• Signal Output: 4-port TTL signals
• Max Pixel Number: 1024 pixels/port
• Control App Compatibility: iOS 10.0+ / Android 4.4+
• Network Modes: AP (Access Point) / STA (Station)
• Supported ICs: WS2812B, WS2811, SK6812, WS2815, etc.

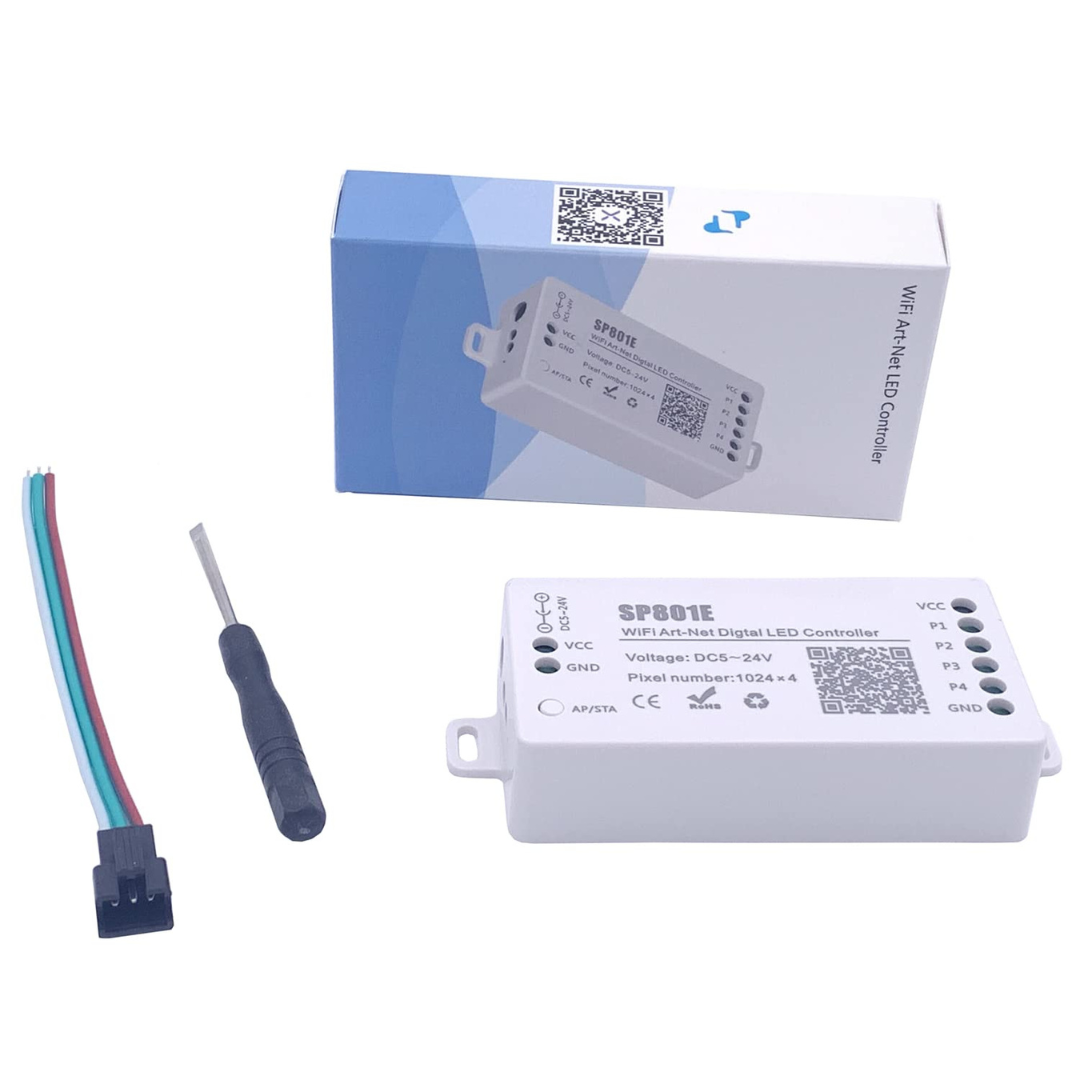

Package Includes:

• 1 x SP801E LED WiFi Controller
• 1 x User Manual

Why Choose the SP801E Controller?

With its support for advanced effects, real-time customization, and dual network modes, the SP801E provides unmatched versatility for LED matrix panels and strip lights. Whether for artistic displays, event lighting, or everyday use, this controller is designed for both professionals and hobbyists.

Bring Your LED Designs to Life!
Order the SP801E LED WiFi Controller today and take your lighting creativity to the next level! Perfect for homes, events, and commercial setups.
